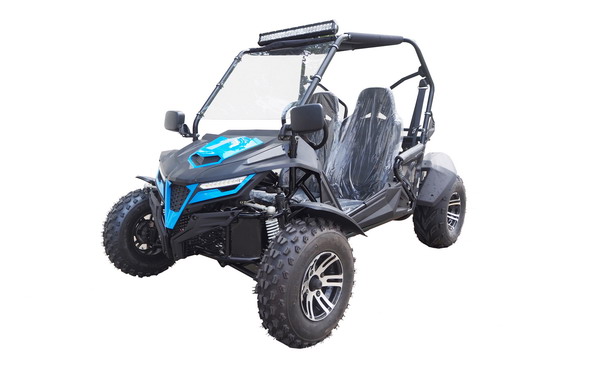

Buggy K5

L x W x H 2340x1400x1480
Package Size 2300x1200x660
Height to Seat 470
Min. Ground Clearance 150
Wheelbase 1800
Pedal to Seat Back 920-1060
Type JL1P57F, 4-stroke, single cylinder, air cooled
Displacement (cc) 149.6
Output Max. Power (Kw) 7.4KW /7500RPM (10HP)
Max. Torque 13NM /5000RPM
Bore x Stroke (mm) 57.4 x 57.8
Climbing ability 15°
Ignition CDI
Starting system Electric start
Battery YTX12-BS 12V10AH
Gasoline Tank Capacity (L) 8.516
Carburetor Item PD24J
Max speed (km/h) 60
Clutch Inside automatic CTV
Gears D-N-R
Brakes, F / R Hydraulic disk brake
Tires, F / R 22x7-10 / 22x10-10
Suspension, F / R Dual A-arm / Thru-shaft with dual shocks and dual A-arm
Max load 227kg (500LBS)
Gross / Net Weight (kg) 295 / 240
